MT6983 5G智能手机应用处理器软件寄存器表：DRAM控制器 (DRAMC)

jackey

MT6983 5G Smartphone Application Processor Software Register TableRAM Controller (DRAMC)
Module name: DRAMC_CH0 Base address: (+0x10230000)
Module name: DRAMC_CH1 Base address: (+0x10240000)
Module name: DRAMC_CH2 Base address: (+0x10250000)
Module name: DRAMC_CH3 Base address: (+0x10260000)

Address	Name	Width	Register  Function
10230000	DDRCOMMON0	32	DRAM  Configuration 0
1023000C	SA_RESERVE	32	SA_RESERVE
102300FC	NONSHU_RSV	32	NONSHU_RSV
10230100	TEST2_A0	32	Test  Agent 2 Configuration 0
10230104	TEST2_A2	32	Test  Agent 2 Configuration 2
10230108	TEST2_A3	32	Test  Agent 2 Configuration 3
1023010C	TEST2_A4	32	Test  Agent 2 Configuration 4
10230110	DUMMY_RD	32	DUMMY_RD
10230114	DUMMY_RD_INTV	32	DUMMY_RD_INTV
10230118	BUS_MON1	32
1023011C	MPRR_CTRL0	32	MPRR_CTRL0
10230120	MPRR_CTRL1	32	MPRR_CTRL1
10230124	SWCMD_EN	32	SWCMD_EN
10230128	SWCMD_CTRL0	32	SWCMD_CTRL0
1023012C	SWCMD_CTRL1	32	SWCMD_CTRL1
10230130	SWCMD_CTRL2	32	SWCMD_CTRL2
10230134	RDDQCGOLDEN1	32	RDDQCGOLDEN1
10230138	RDDQCGOLDEN	32	RDDQCGOLDEN
1023013C	RTMRW_CTRL0	32	RTMRW_CTRL0
10230140	RTMRW_CTRL1	32	RTMRW_CTRL1
10230144	RTMRW_CTRL2	32	RTMRW_CTRL2
10230148	RTMRW_CTRL3	32	RTMRW_CTRL3
1023014C	CBT_WLEV_CTRL0	32	CBT_WLEV_CTRL0
10230150	CBT_WLEV_CTRL1	32	CBT_WLEV_CTRL1
10230154	CBT_WLEV_CTRL2	32	CBT_WLEV_CTRL2
10230158	CBT_WLEV_CTRL3	32	CBT_WLEV_CTRL3
1023015C	CBT_WLEV_CTRL4	32	CBT_WLEV_CTRL4
10230160	CBT_WLEV_ATK_CTRL0	32	CBT_WLEV_ATK_CTRL0
10230164	CBT_WLEV_ATK_CTRL1	32	CBT_WLEV_ATK_CTRL1
10230168	SREF_DPD_CTRL	32	Self  Refresh DPD Control
1023016C	CFC_CTRL	32
10230170	DLLFRZ_CTRL	32	DLLFRZ  Control
10230174	MPC_CTRL	32	Runtime  MPC
10230178	HW_MRR_FUN	32	MRR  AC-Timing
1023017C	SCHEDULER_COM	32	SCHEDULER_COM
10230190	ACTIMING_CTRL	32	DRAM  Configuration 0
10230194	CBT_WLEV_CTRL6	32	CBT_WLEV_CTRL6
102301A0	ZQ_SET0	32	ZQ_SET0
102301A4	ZQ_SET1	32	ZQ_SET1
102301B0	TX_TRACKING_SET0	32	TX_TRACKING_SET0
102301B4	TX_TRACKING_SET1	32	TX_TRACKING_SET1
102301B8	TX_TRACKING_SET2	32	TX_TRACKING_SET2
102301C0	TX_RETRY_SET0	32	TX_RETRY_SET0
102301C4	FAST_RDDQS_SET0	32	FAST_RDDQS_SET0
102301C8	MPC_OPTION	32	MPC_OPTION
102301D0	SCRAMBLE_CFG0	32	DRAM  Scramble Configuration 0
102301D4	SCRAMBLE_CFG1	32	DRAM  Scramble Configuration 1
102301D8	SCRAMBLE_CFG2	32	DRAM  Scramble Configuration 2

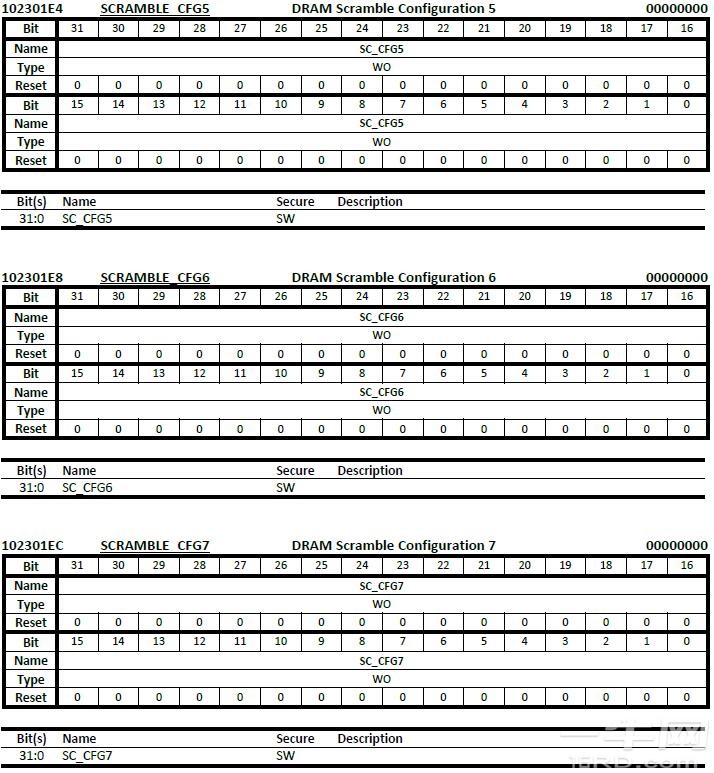

MT6983 5G智能手机应用处理器软件寄存器表：DRAM控制器 (DRAMC)

内容太长了，905页，需要的下载查看
