MT6983 5G手机应用处理器软件寄存器表：外部存储器接口 (EMI)

jackey

MT6983 5G Smartphone Application Processor Software Register Table:External Memory Interface (EMI)

Module name: NEMI_REG Base address: (+0x10219000)
Module name: SEMI_REG Base address: (+0x1021d000)

Address	Name	Width	Register  Function
10219000	EMI_CONA	32	Address  Mapping
10219004	EMI_CONP	32	Data  Transfer Overhead for Specific Over 128B Data Size
10219008	EMI_CONB	32	Data  Transfer Overhead for Specific Data Size
1021900C	EMI_CONQ	32	Data  Transfer Overhead for Specific Over 128B Data Size
10219010	EMI_CONC	32	Data  Transfer Overhead for Specific Data Size
10219014	EMI_CONR	32	Data  Transfer Overhead for Specific Non-36 Byte Alignment Over 128B Data Size
10219018	EMI_COND	32	FIFO  Status
1021901C	EMI_CONP_2ND	32	Data  Transfer 2nd Overhead for Specific Over 128B Data Size
10219020	EMI_CONE	32	Feature  Setting
10219024	EMI_CONQ_2ND	32	Data  Transfer 2nd Overhead for Specific Over 128B Data Size
10219028	EMI_CONF	32	Address  Scramble Setting
1021902C	EMI_CONR_2ND	32	Data  Transfer 2nd Overhead for Specific Non-36 Byte Alignment Over 128B Data Size
10219030	EMI_CONG	32	Data  Transfer Overhead for Specific Non-36 Byte Alignment Data Size
10219034	EMI_CONB_3RD	32	Data  Transfer Overhead 3rd for Specific Data Size
10219038	EMI_CONH	32	Address  Mapping 2
1021903C	EMI_CONH_2ND	32	Address  Mapping 3
10219040	EMI_CONI	32	ISP  Configuration
10219044	EMI_CONB_4TH	32	Data  Transfer Overhead 4th for Specific Data Size
10219048	EMI_CONJ	32	GPU  Configuration
1021904C	EMI_CONB_5TH	32	Data  Transfer Overhead 5th for Specific Data Size
10219050	EMI_CONK	32	Address  Mapping 3
10219054	EMI_CONB_6TH	32	Data  Transfer Overhead 6th for Specific Data Size
1021905C	EMI_CONB_7TH	32	Data  Transfer Overhead 7th for Specific Data Size
10219060	EMI_CONM	32	MISC
10219064	EMI_CONB_8TH	32	Data  Transfer Overhead 8th for Specific Data Size
10219068	EMI_CONN	32	MISC
1021906C	EMI_CONC_3RD	32	Data  Transfer Overhead 3rd for Specific Data Size
10219070	EMI_CONO	32	AXI  Slave Info FIFO Maximum Depth Setting
10219074	EMI_CONC_4TH	32	Data  Transfer Overhead 4th for Specific Data Size
10219078	EMI_MDCT	32	EMI  Modem Control Register
1021907C	EMI_MDCT_2ND	32	EMI  Modem Control Register
10219084	EMI_CONC_5TH	32	Data  Transfer Overhead 5th for Specific Data Size
1021908C	EMI_CONC_6TH	32	Data  Transfer Overhead 6th for Specific Data Size
10219094	EMI_CONC_7TH	32	Data  Transfer Overhead 7th for Specific Data Size
1021909C	EMI_CONC_8TH	32	Data  Transfer Overhead 8th for Specific Data Size
102190C4	EMI_CONG_3RD	32	Data  Transfer Overhead 3rd for Specific Non-36 Byte Alignment Data Size
102190C8	EMI_CONG_4TH	32	Data  Transfer Overhead 4th for Specific Non-36 Byte Alignment Data Size
102190CC	EMI_CONG_5TH	32	Data  Transfer Overhead 5th for Specific Non-36 Byte Alignment Data Size
102190D0	EMI_IOCL	32	MAX  OSTD Control
102190D4	EMI_IOCL_2ND	32	MAX  OSTD Control
102190D8	EMI_IOCM	32	MAX  OSTD Control

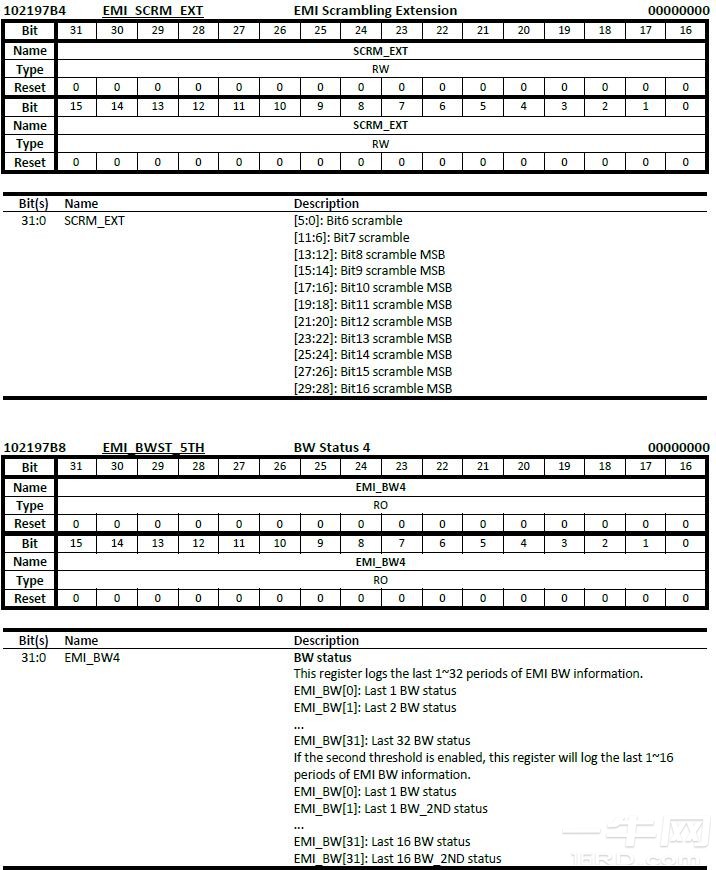

MT6983 5G手机应用处理器软件寄存器表：外部存储器接口 (EMI)

需要MTK其他平台的全套资料，请联系：18924675756（微信同号+号备注：如mt6983）
内容太长了，一共779页，有需要的下载文件查看
